Solar Power

Here is some information about my grid-tied solar power system. It was installed by Owens Electric & Solar and was switched-on in March of 2005.

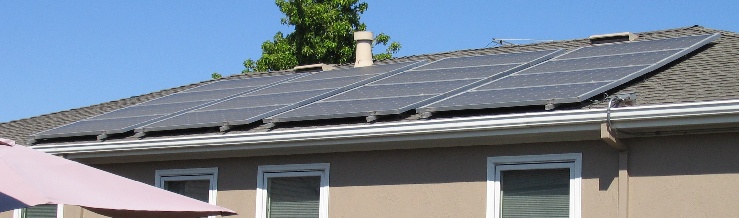

This system uses 16 165-watt Shell PowerMax panels.

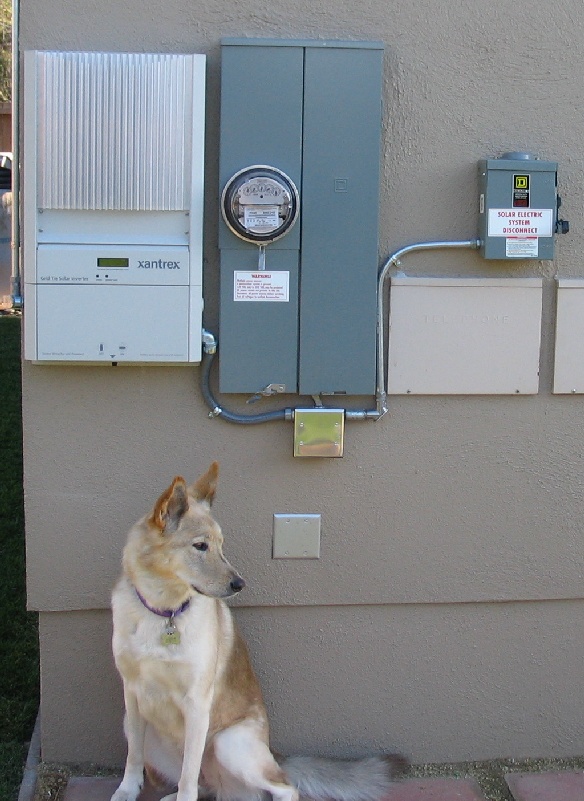

The DC from the panels feeds the Xantrex GT 3.0 inverter to provide 240VAC to the electrical panel.

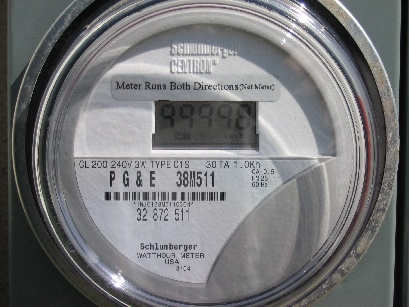

The standard electro-mechanical meter was later replaced by a digital one. Note that the reading shows 99998 kWh which means that the meter had run backwards for 2 kWh because the solar panels produced that much more energy than the house used during that time.

Here is the latest snapshot of the power data from the inverter.
Click here for automatically updated readings.
THIS IS OLD DATA WHILE TRANSITIONING TO A NEW COMPUTER.
Inverter AC Watts

1504

Volts AC
239.4
Volts DC
283.0
MTTP
281.9
Peak AC
1843
Hz
60
Amps DC
5.55
Heat Sink
F 75
Watts DC
1581
EFf
95.2
Whr Today
6971
03/23/2005
09:01:54
